5 CHANNEL CYLINDRICAL BATTERY UNIVERSAL SORTING MACHINE (4 SKXD-500) (b475)

5 CHANNEL CYLINDRICAL BATTERY UNIVERSAL SORTING MACHINE (4 SKXD-500)

Product Data Sheet

1 Year Warranty

Fast, Accurate Battery Sorting for High-Volume Production Lines

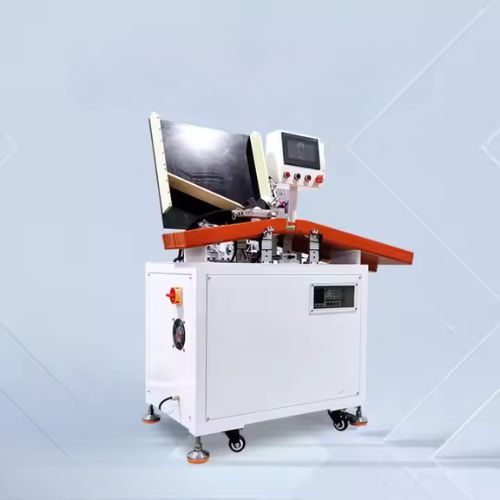

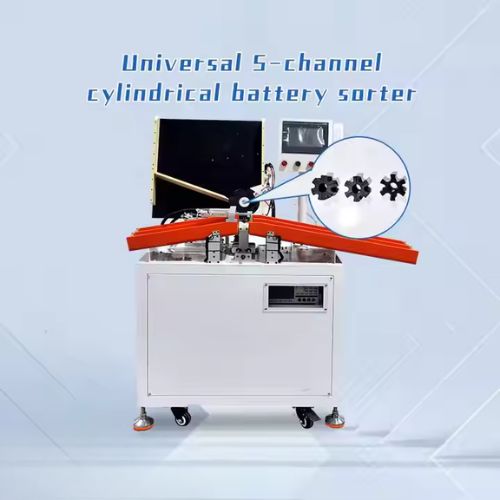

The 4 SKXD-500 is a high-performance 5-channel cylindrical battery sorting machine engineered for fast, accurate, and automated classification of lithium-ion battery cells based on voltage, internal resistance, or capacity. Designed to streamline your quality control process, this universal sorting machine supports a wide range of cylindrical cell formats including 18650, 21700, and 26650.

With up to 500 cells/hour throughput, the SKXD-500 significantly boosts your battery pack production efficiency, reduces human error, and ensures consistent performance across all sorted cells.

Key Features

• •

  5 Sorting Channels Automatically categorizes cells into 5 custom-defined grades based on test results.

• •

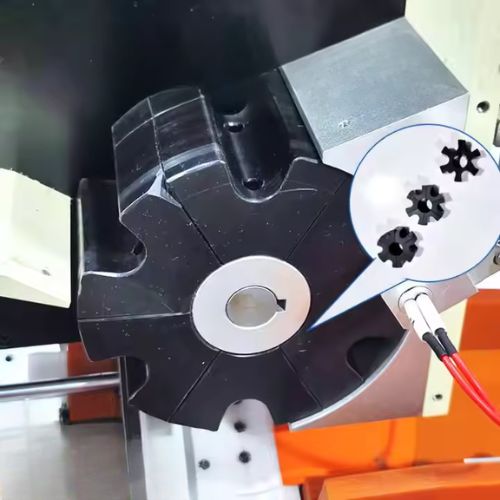

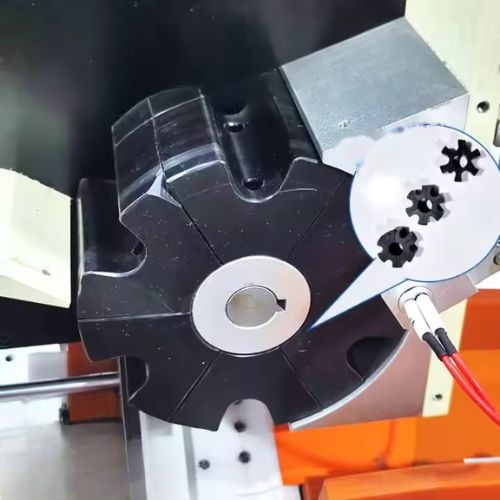

  Universal Compatibility Adjustable fixtures support multiple cylindrical battery types: 18650 / 21700 / 26650 / 26700.

• •

  Fast Sorting Speed Up to 500 cells per hour with high consistency and minimal false rejection.

• •

  Integrated Testing

  • •Internal resistance, voltage, and optional capacity detection
  • •High-precision measurement modules ensure accurate readings
• •

  User-Friendly Interface

  • •Touchscreen control panel with intuitive operation
  • •Option for PC software control and data export
• •

  Data Logging Test results are recorded and exportable in Excel/CSV for quality tracking and documentation.

• •

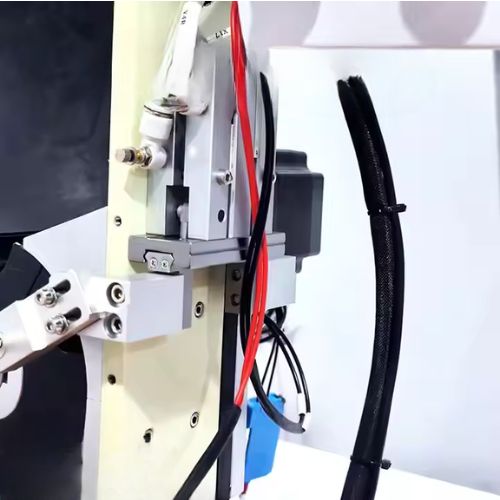

  Industrial Build Quality Heavy-duty frame, durable pneumatic mechanisms, and reliable motion systems for continuous operation.

• •

  Smart Communication RS485/USB/Ethernet available for integration with MES and automated lines.

Technical Specifications

• •Model 4 SKXD-500
• •Sorting Channels 5 Output Channels + 1 NG Channel
• •Supported Cell Types 18650, 21700, 26650, 26700, 32700
• •Testing Functions Voltage, Internal Resistance, Capacity (optional)
• •Sorting Speed Up to 500 Cells/hour
• •Voltage Accuracy ±0.5mV
• •IR Accuracy ±0.1mΩ
• •Operation Mode Automatic + Manual Calibration
• •Control Interface 7” Touchscreen / PC Software
• •Power Supply AC 220V ±10%, 50/60Hz
• •Air Pressure 0.4–0.6 MPa (Dry & Clean Air)
• •Dimensions 1200mm × 550mm × 1400mm
• •Weight 180kg

Applications

• •

  Battery Production Lines Ensure consistent cell quality before pack assembly.

• •

  Battery Grading & Quality Control Sort by resistance/voltage to match performance in packs.

• •

  Lab Testing Facilities Speed up small batch sorting for prototyping and R&D.

• •

  OEM & EV Battery Manufacturers Streamline inspection processes in large-scale operations.

Why Choose the 4 SKXD-500?

• •Automation-Ready: Boost efficiency and lower labor costs
• •Multi-Cell Support: One machine for all major cylindrical sizes
• •Precision Grading: Reliable data for tight tolerance applications
• •Plug-and-Play Interface: Intuitive controls for fast deployment
• •Trusted in Industry Labs and Factories Worldwide
