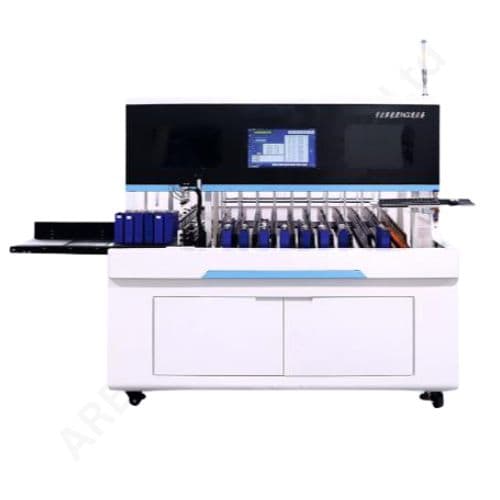

10 CHANNEL SQUARE BATTERY SORTER (SKXD-PS-1000)

Product Data Sheet

1 Year Warranty

10 CHANNEL SQUARE BATTERY SORTER (SKXD-PS-1000)

Precision Battery Grading Solution for Prismatic Lithium Cells

The SKXD-PS-1000 is a high-efficiency 10 Channel Square Battery Sorting Machine specifically engineered to sort, test, and grade prismatic (square) lithium battery cells based on their electrical characteristics. Designed for both medium and large-format cell production lines, this machine automatically classifies cells based on voltage, internal resistance, and capacity matching-ensuring high consistency and quality for battery packs used in EVs, ESS, and industrial power applications.

With 10 intelligent sorting channels, an integrated test system, and fast cycle times, the SKXD-PS-1000 improves manufacturing productivity while ensuring precise cell binning and quality assurance.

Key Features

• •

  10 Intelligent Sorting Channels Automatically distributes square lithium cells into 10 categories based on user-defined grading standards (voltage, IR, etc.).

• •

  High Accuracy Testing System Measures open circuit voltage (OCV) and internal resistance (IR) with industrial-grade precision to ensure proper classification for pack assembly.

• •

  Fully Automated Sorting Process Robotic arms or pneumatic actuators guide the batteries into sorting trays with minimal human intervention - ensuring fast and reliable operation.

• •

  Smart Software & Touchscreen Interface Real-time display of test data, sorting status, and statistics. Includes data logging and export functions for traceability.

• •

  Safety & Anti-Collision Mechanism Built-in battery detection sensors and mechanical buffers protect the equipment and prevent damage from misaligned or failed cells.

• •

  Expandable & Easy to Integrate Easily connects with upstream or downstream battery production equipment for seamless factory automation.

Technical Specifications

• •Model SKXD-PS-1000
• •Battery Type Prismatic / Square Lithium Cells
• •Number of Channels 10 Sorting Channels + 1 NG (reject) Channel
• •Tested Parameters Voltage (OCV), Internal Resistance (IR)
• •Voltage Test Range 0-100V (±0.05% FS Accuracy)
• •IR Test Range 0.1-100 mΩ (±0.5% Accuracy)
• •Cycle Time per Cell < 3 seconds
• •Display Touchscreen with PC/PLC System
• •Data Export USB, Ethernet, CSV Report
• •Power Supply AC 220V ±10%, 50Hz
• •Air Supply 0.5-0.7 MPa (if pneumatic type)
• •Machine Size Approx. 1800mm × 1100mm × 1600mm
• •Weight ~500 kg

Applications

• •

  EV Battery Pack Manufacturing Grade square lithium cells before pack assembly to ensure consistent voltage and IR balance.

• •

  Energy Storage System (ESS) Producers Use for matching cells in energy storage modules where reliability is critical.

• •

  Battery Quality Control & Sorting Labs Standard tool for R&D labs and QA departments ensuring tight tolerances.

• •

  OEM & Custom Battery Manufacturers Sort cells for different applications and customer specs - from low-drain to high-discharge products.

Why Choose SKXD-PS-1000?

• •Fast & Accurate Cell Sorting
• •Automated 10-Channel Design
• •Ideal for High-Throughput Environments
• •Customizable for Cell Sizes & Criteria
• •Compliant with Industrial Standards
