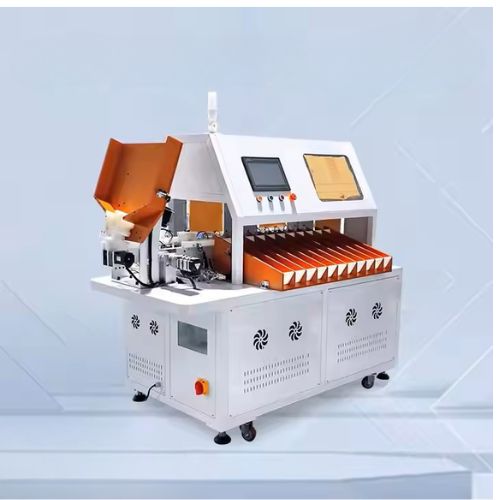

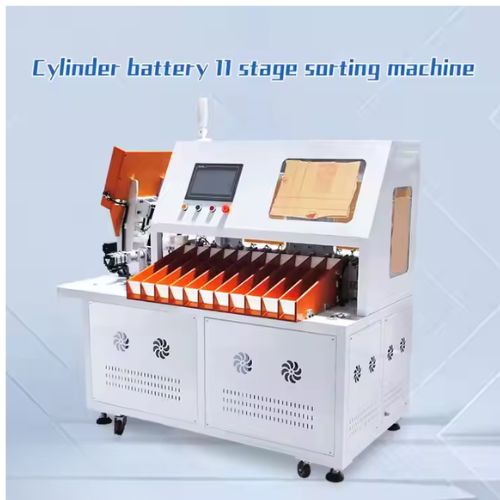

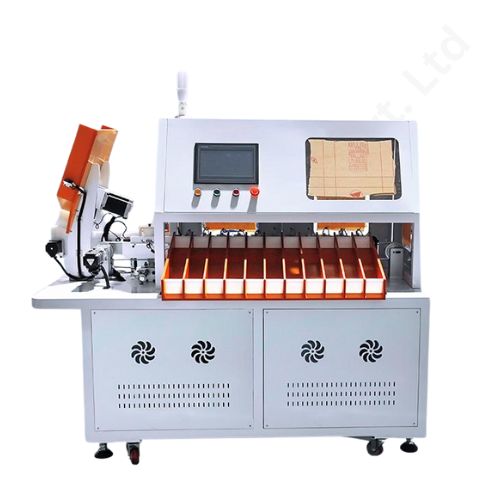

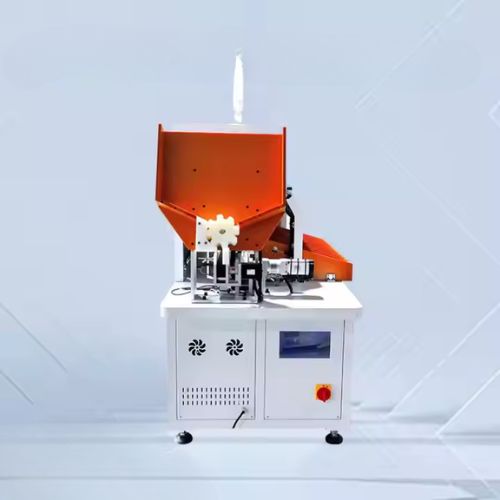

11 CHANNEL CYLINDRICAL BATTERY UNIVERSAL SORTING MACHINE (SKXD-1100) (b476)

11 CHANNEL CYLINDRICAL BATTERY UNIVERSAL SORTING MACHINE (SKXD-1100)

Product Data Sheet

1 Year Warranty

Maximum Efficiency. Precision Sorting. Seamless Integration.

The SKXD-1100 is a high-speed, automated 11-channel battery sorting machine designed for professional battery production environments. Capable of sorting up to 1100 cylindrical lithium-ion cells per hour, this smart sorting system automates your quality control workflow by testing and classifying cells based on voltage, internal resistance, or capacity — all with exceptional precision.

Whether you're building EV packs, energy storage systems, or power tool batteries, the SKXD-1100 ensures consistent cell performance, efficient throughput, and reduced manual labor.

Key Features

• •

  11 Sorting Channels + 1 NG (Reject) Channel Automatically classifies battery cells into 11 categories for precise grading and pack matching.

• •

  Universal Compatibility Supports a wide range of cylindrical cells including 18650, 21700, 26650, 26700, and more, thanks to adjustable fixtures and software presets.

• •

  High-Speed Sorting Processes up to 1100 cells per hour with high repeatability and minimal error rate.

• •

  Built-in Testing Functionality

  • •Voltage Measurement: High-resolution detection
  • •Internal Resistance: Ultra-low impedance accuracy
  • •Optional Capacity Detection
• •

  Touchscreen + PC Control 7-inch user-friendly touchscreen interface with multi-language support. PC software enables remote monitoring, data backup, and parameter adjustments.

• •

  Data Recording & Export Real-time logging of all test data with CSV/Excel export for traceability and production analysis.

• •

  Full Safety Protection Over-voltage, polarity reversal, and jammed-cell detection included for safe operation in high-speed environments.

Technical Specifications

• •Model SKXD-1100
• •Sorting Channels 11 Output Channels + 1 NG Channel
• •Supported Cell Types 18650, 21700, 26650, 26700, 32700
• •Testing Items Voltage, Internal Resistance, (Optional: Capacity)
• •Sorting Speed Up to 1100 Cells/hour
• •Voltage Accuracy ±0.5mV
• •IR Accuracy ±0.1mΩ
• •Low pressure of gas source: 0.4–0.6 MPa
• •Power Supply AC 220V ±10%, 50/60Hz
• •Dimensions 1600mm × 800mm × 1700mm
• •Machine Weight 260kg

Applications

• •

  Battery Production & OEM Lines Automate large-scale sorting for pack consistency.

• •

  EV Battery Manufacturers Match cells by IR and voltage for balanced performance.

• •

  Solar ESS and Power Tool Battery Assemblers Ensure performance uniformity with precision testing.

• •

  R&D and Lab Environments Speed up prototyping and batch verification with automated grading.

Why Choose SKXD-1100?

• •High-Speed Output: Up to 1100 cells/hour
• •11 Precision Channels: Fine-tuned sorting logic
• •Multi-Cell Compatibility: One platform for multiple formats
• •Data Intelligence: Exportable, trackable, and reviewable
• •Built for 24/7 Production: Durable and scalable solution
