BATTERY COMPONENT PRODUCT COMPREHENSIVE TESTER MACHINE 110V120 (SKXD-T1130) (b47a)

BATTERY COMPONENT PRODUCT COMPREHENSIVE TESTER 110V120 (SKXD-T1130)

Product Data Sheet

1 Year Warranty

All-in-One Testing Solution for Battery Pack Components

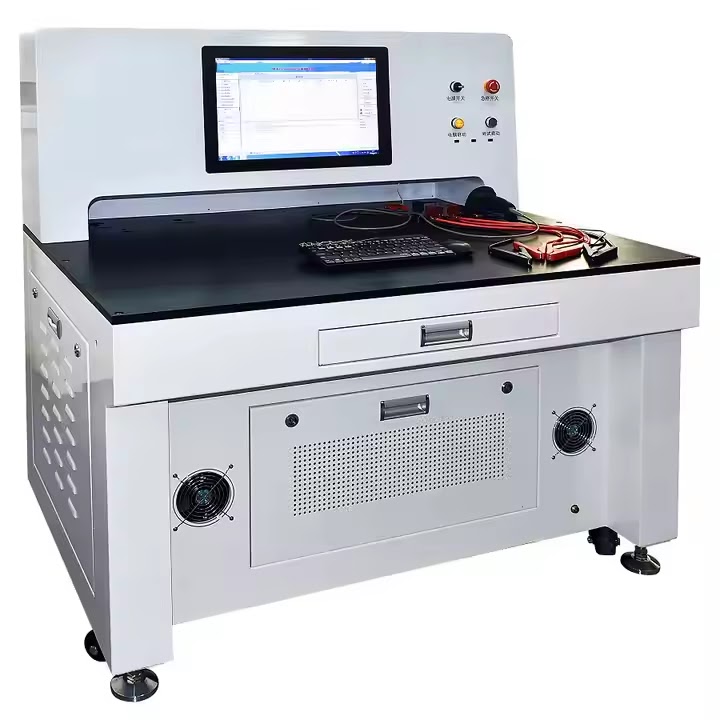

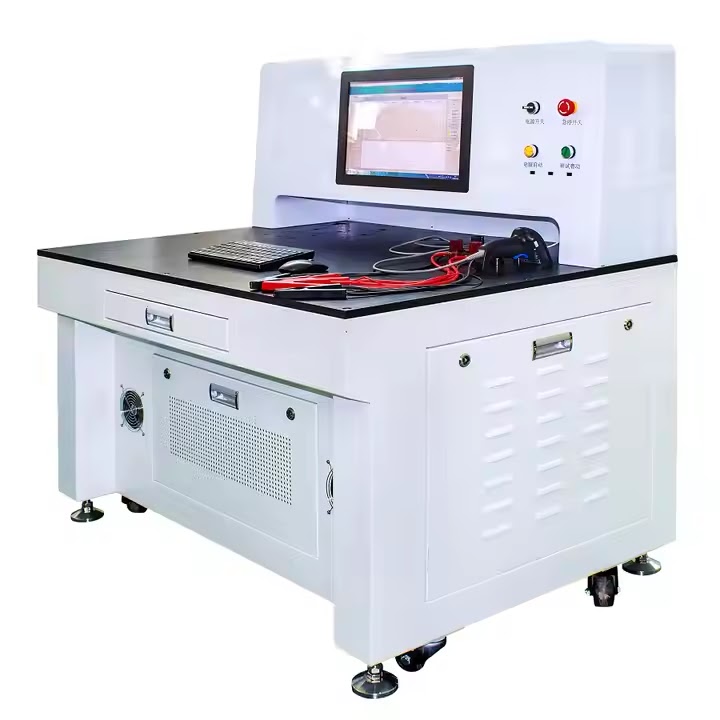

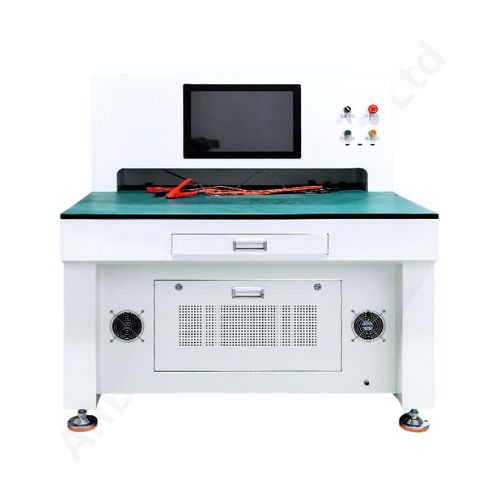

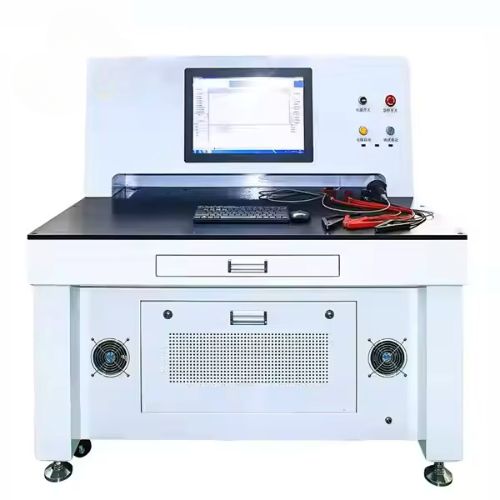

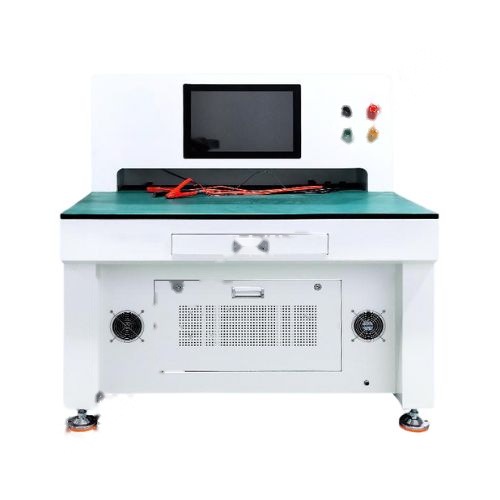

The SKXD-T1130 Battery Component Product Comprehensive Tester Machine is a high-precision, multi-functional testing platform designed to evaluate the core components of lithium battery packs. Built to perform voltage, resistance, insulation, continuity, and functionality checks, this machine streamlines end-of-line quality control across EV batteries, energy storage modules, and portable power solutions.

With a compact design, 110V/120V support, and easy integration into semi-automatic or fully automatic battery production lines, the SKXD-T1130 is an essential asset for manufacturers aiming to guarantee performance, compliance, and safety of every battery component.

Key Features

• •

  Comprehensive Multi-Item Testing Tests key battery component metrics including:

  • •Open circuit voltage
  • •Internal resistance
  • •Insulation resistance
  • •Short circuit detection
  • •Polarity recognition
  • •BMS communication (optional)
• •

  Universal Compatibility Supports testing of:

  • •Battery protection boards (BMS)
  • •Busbars & connectors
  • •Battery holders and terminals
  • •Battery packs (assembled or partial)
• •

  Real-Time Test Feedback Rapid on-screen display of test results with clear pass/fail indicators and option to export data.

• •

  User-Friendly Interface 7” touch panel interface with intuitive workflow and multilingual support (English/Chinese).

• •

  Enhanced Safety System Built-in over-voltage, over-current, and reverse polarity protection systems ensure operator and product safety.

• •

  Data Management & Export Save test logs in CSV/Excel formats, with USB/PC connectivity for QC traceability and report generation.

Technical Specifications

• •Model SKXD-T1130
• •Input Voltage AC 110V / 120V ±10%, 50/60Hz
• •Testable Components BMS, connectors, modules, harnesses, etc.
• •Voltage Measurement Range 0 – 100V (±0.2% accuracy)
• •Resistance Measurement 0.1mΩ – 20Ω (±0.5% accuracy)
• •Insulation Resistance 1MΩ – 100MΩ
• •Polarity Detection Automatic
• •Short Circuit Test Yes
• •Interface Touchscreen + Optional PC Software
• •Data Export USB / Ethernet / RS485 / CSV Output
• •Cycle Time 1–3 seconds per component
• •Dimensions Approx. 500mm × 450mm × 350mm
• •Weight ~25kg

Applications

• •

  Battery Pack Quality Control Ideal for verifying finished battery assemblies before shipment.

• •

  BMS and Busbar Manufacturers Perform functional testing to ensure quality and consistency.

• •

  Battery OEMs Use in production lines to reduce rework and field failures.

• •

  R&D and Testing Labs Analyze performance data across different materials and components.

Why Choose SKXD-T1130?

• •Compact Yet Powerful Design
• •110V/120V Support for Versatile Deployment
• •Comprehensive Testing in One Machine
• •User-Friendly Operation & Fast Data Export
• •Built for Speed, Accuracy, and Safety
