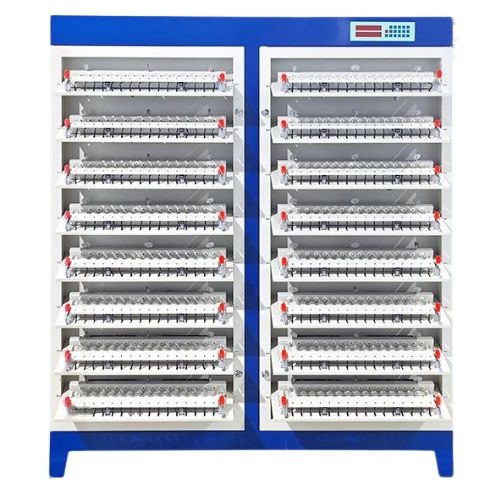

512 CYLINDRICAL BATTERY CELL CAPACITY CABINET 5V 3A (SKXD-512-5V3A) (1236)

512 CYLINDRICAL BATTERY CELL CAPACITY CABINET 5V 3A (SKXD-512-5V3A)

Product Data Sheet

1 Year Warranty

High-Precision Battery Testing and Charging for Cylindrical Cells

The SKXD-512-5V3A is a professional-grade Cylindrical Battery Cell Capacity Testing Cabinet designed for high-throughput performance. With a total of 512 independent test channels, each supporting 5V/3A, this system is ideal for 18650, 21700, 26650, and other cylindrical lithium-ion battery formats.

Whether you're a battery manufacturer, lab engineer, or quality control manager, the SKXD-512-5V3A ensures precise capacity grading, charge-discharge cycles, and voltage/current monitoring with top-tier reliability.

Key Features

• •

  512 Channels: Each channel is fully independent, allowing simultaneous charging/discharging for up to 512 cells.

• •

  Voltage & Current Range: 0–5V / 0–3A per channel – perfect for most cylindrical Li-ion cells.

• •

  High Precision Measurement:

  • •Voltage Accuracy: ±0.02%FS
  • •Current Accuracy: ±0.05%FS
• •

  Intelligent Control System:

  • •Advanced PC-based software interface
  • •Real-time monitoring of all cell statuses
  • •Supports multi-step charge/discharge programming
• •

  Data Logging & Export:

  • •Automatically records cycle data
  • •Exports to Excel/CSV formats for analysis
• •

  Built-in Safety & Thermal Control:

  • •Overvoltage, overcurrent, and temperature protection
  • •Smart ventilation and cooling fans
• •

  Industrial-grade Construction:

  • •Durable steel cabinet
  • •Modular drawer-style battery holders
  • •Ergonomic design for easy maintenance

Technical Specifications

• •Model SKXD-512-5V3A
• •Channel Count 512 (64 slots x 8 cells each)
• •Voltage Range 0–5V
• •Current Range 0–3A
• •Voltage Accuracy ±0.02%FS
• •Current Accuracy ±0.05%FS
• •Cell Types 18650, 21700, 26650, etc.
• •PC Software Included (Windows Compatible)
• •Power Supply AC 220V ±10%, 50/60Hz
• •Cooling Method Forced Air Cooling
• •Communication RS485 / Ethernet
• •Dimensions Approx. 1800mm × 800mm × 1800mm
• •Weight ~400kg

Applications

• •Lithium-ion battery production lines
• •R&D battery development labs
• •University and industrial battery testing centers
• •OEM battery pack capacity sorting

Why Choose SKXD-512-5V3A?

• •Massive Capacity: Test 512 cells simultaneously with top-tier consistency
• •Precision Engineering: Delivers laboratory-grade results with every cycle
• •Full Automation: Reduces labor and increases testing throughput
• •Data-Driven Decisions: Empower your QA/QC process with real-time analytics
• •Trusted by Industry Experts: Used globally in advanced battery manufacturing
