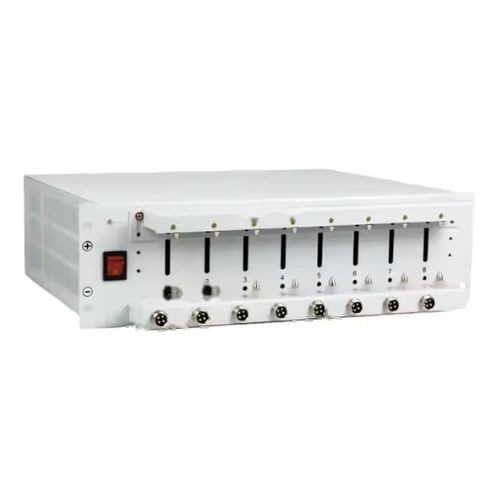

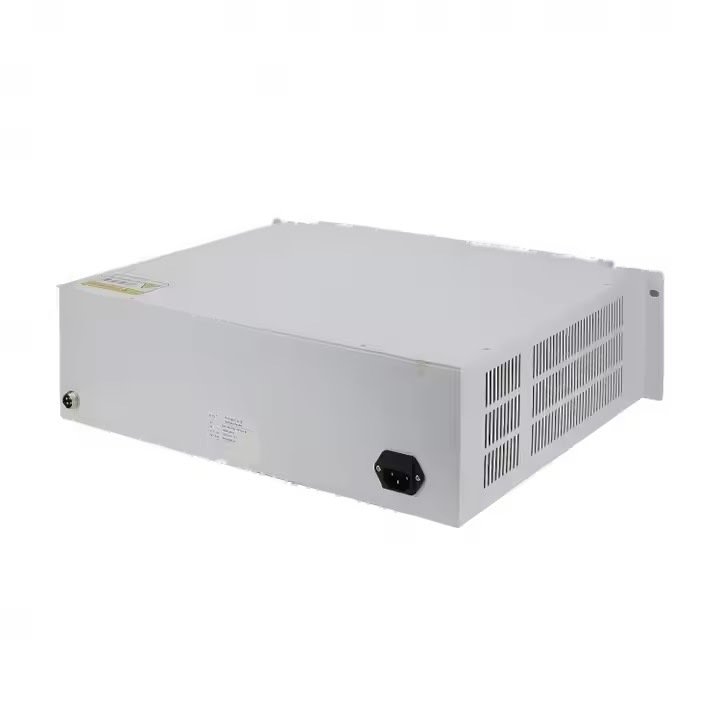

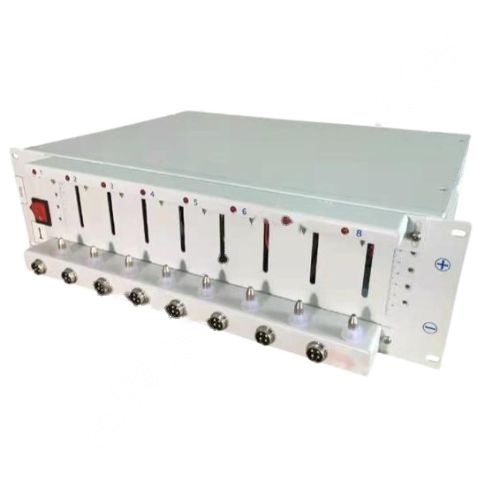

8 BATTERY CELL CAPACITY CABINET 5V 6A (SKXD-08-5V6A)

Product Data Sheet

1 Year Warranty

Compact High-Current Testing for Cylindrical Lithium-Ion Cells

The SKXD-08-5V6A is a precision-engineered battery capacity testing cabinet designed for R&D labs, pilot lines, and custom battery testing. Featuring 8 independent test channels, each with a 5V/6A rating, this system is ideal for evaluating high-capacity cylindrical cells such as 18650, 21700, and 26650.

This cabinet delivers high-current charge and discharge testing with professional-grade accuracy in a compact, desktop-friendly footprint — ideal for research institutions and specialized battery manufacturers.

Key Features

• •

  8 Independent Test Channels Each channel operates independently, supporting customizable test parameters for simultaneous evaluation of multiple cells.

• •

  5V/6A Output Per Channel Ideal for high-power battery cells, enabling rapid testing and grading without compromising precision.

• •

  High-Accuracy Measurement

  • •Voltage Accuracy: ±0.02%FS
  • •Current Accuracy: ±0.05%FS
• •

  Intelligent Software Control

  • •Real-time status monitoring and data logging
  • •Step-based programmable charge/discharge cycles
  • •Built-in PC software for easy operation
• •

  Safety and Protection Systems

  • •Overcharge, over-discharge, overcurrent, and over-temperature protection
  • •Automatic stop and alert for abnormal conditions
• •

  Compact & Modular Design

  • •Ideal for desktop or rack mounting
  • •Easy maintenance and cable management
  • •Clean, industrial-grade housing

Technical Specifications

• •Model SKXD-08-5V6A
• •Channel Count 8 Independent Channels
• •Voltage Range 0–5V
• •Current Range 0–6A
• •Voltage Accuracy ±0.02%FS
• •Current Accuracy ±0.05%FS
• •Supported Cells Cylindrical: 18650, 21700, 26650
• •Data Export Excel, PDF
• •Power Supply AC 220V ±10%, 50Hz
• •Communication RS485 / USB / LAN (optional)
• •Cooling Forced Air Cooling
• •Dimensions 450mm × 500mm × 140mm
• •Weight ~35kg

Applications

• •

  Battery R&D Labs Conduct experimental charge/discharge protocols for new chemistries.

• •

  University Research Centers Perform reliable data-driven studies on lithium-ion cell behavior.

• •

  Battery Customization Workshops Grade and analyze cells for high-performance applications.

• •

  Quality Control Lines Confirm cell reliability and capacity before pack assembly.

Why Choose the SKXD-08-5V6A?

• •High Current Capability: 6A per channel for fast, real-world testing
• •Compact and Scalable: Perfect for small-scale labs or startups
• •Precision Engineering: Trusted test results, cycle after cycle
• •Affordable, Professional-Grade Equipment
• •Ideal for Innovation & Development
