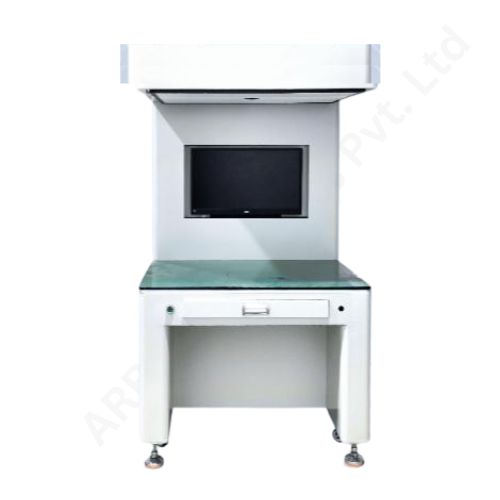

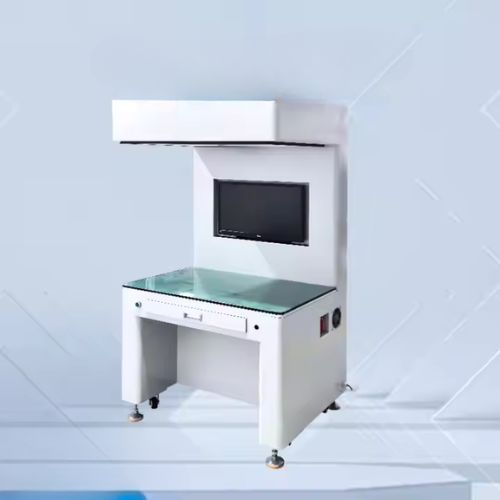

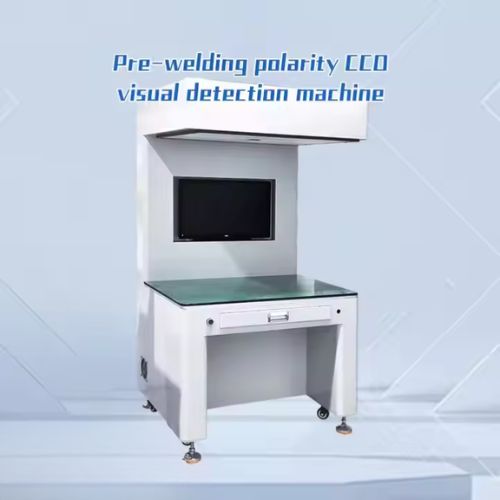

BATTERY POSITIVE AND NEGATIVE ELECTRODE DETECTION MACHINE (6 SKXD-CCD01)

Product Data Sheet

1 Year Warranty

Precision Polarity Detection for Safer Battery Assembly

The 6 SKXD-CCD01 is an advanced CCD vision-based battery polarity detection machine, engineered for fast, non-contact identification of the positive and negative electrodes of cylindrical battery cells. Designed for high-efficiency production lines, this system uses high-speed camera technology (CCD) and AI-enhanced algorithms to detect battery polarity with 99.9% accuracy—eliminating the risk of reversed cell installation.

Whether you're in EV battery manufacturing, power tool battery assembly, or lab-scale cell sorting, the SKXD-CCD01 offers automated inspection, minimal error rates, and seamless integration with upstream and downstream automation systems.

Key Features

• •

  High-Speed CCD Vision System Detects the top/bottom electrode surface markings using advanced imaging, even in poor lighting or reflective environments.

• •

  Real-Time Polarity Detection Automatically determines whether the exposed terminal is positive or negative, with decision logic for handling NG (rejected) cells.

• •

  Conveyor-Compatible Automation Easily integrates with existing assembly lines or conveyors for in-line polarity checking.

• •

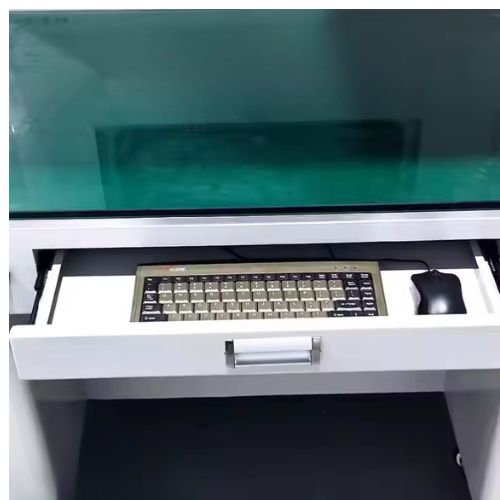

  Intelligent Control Interface

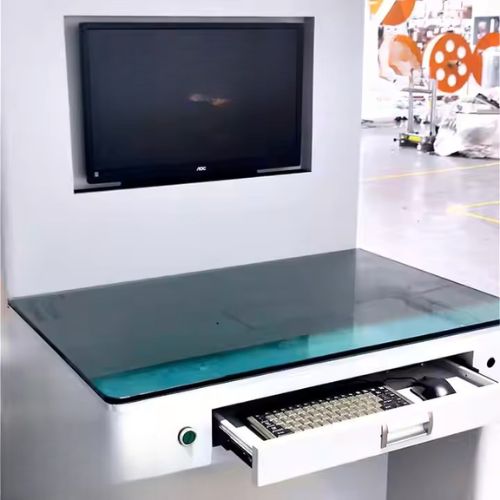

  • •Intuitive 7” touchscreen
  • •Chinese/English interface
  • •Real-time display of test results
  • •Alarm for incorrect polarity
• •

  LED Lighting Optimization Adjustable industrial-grade lighting ensures consistent image recognition in various workshop conditions.

• •

  Robust Industrial Build

  • •Anti-static coating
  • •Precision aluminum structure
  • •Dust-resistant and maintenance-friendly

Technical Specifications

• •Model 6 SKXD-CCD01
• •Detection Method CCD Camera + AI Algorithm
• •Detection Accuracy ≥ 99.9%
• •Supported Cell Types 18650 / 21700 / 26650 / 26700
• •Speed Up to 2000 Cells/hour
• •Camera Resolution ≥ 5 MP (customizable)
• •Lighting System Adjustable LED Ring Light
• •Interface 7” Touchscreen + External PC Option
• •NG Cell Handling Alarm, Light, or Reject Mechanism
• •Power Supply AC 220V ±10%, 50Hz
• •Dimensions Approx. 800mm × 600mm × 1400mm
• •Weight 120kg

Applications

• •

  Battery Pack Assembly Lines Prevent polarity reversal before tab welding or insertion.

• •

  Quality Control in Cell Production Integrate into QA to confirm orientation before shipping or sorting.

• •

  EV Battery and Tool Pack Manufacturing Ensure proper alignment during high-speed pack production.

• •

  Lab Testing and R&D Use in pilot lines or small batch inspection setups.

Why Choose the 6 SKXD-CCD01?

• •Eliminates Manual Inspection Errors
• •Compatible with Multiple Cell Sizes
• •Non-Contact & Fast Detection
• •Low Maintenance, High ROI
• •Built for High-Volume Automation
