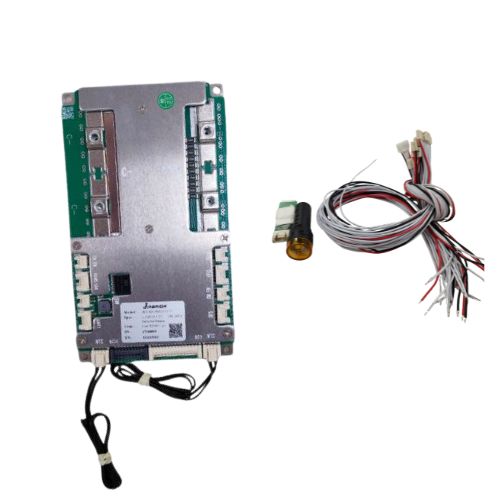

BMS 8-24S 200A SMART JBD (SP24S004) (494a)

JBD Smart BMS 8-24S 200A (SP24S004) Charge and discharge are both at the same port

Product Data Sheet (SP24S004)

• •Cell specifications: 8~24 strings of LiFePO4 battery
• •Interface type: Charge and discharge are both at the same port
• •Charging voltage: 3.60V*Number of strings
• •Cell voltage range: 2.20~3.75V
• •Continuous charging current: 200A
• •Continuous discharging current: 200A
• •Consumption of running: ≤20mA
• •Operating temperature: -20°C~75°C

The JBD SMART BMS 200A SP24S004 (8-24S) is a robust battery management system for lithium-ion and LiFePO4 packs with 8 to 24 series cells. It supports a continuous discharge current of 200A and peak currents up to 400A, ensuring high-performance power delivery. The BMS offers advanced protection features, including overcharge, over-discharge, overcurrent, temperature, and short-circuit safeguards. Equipped with active cell balancing, it maintains voltage uniformity for enhanced battery health. With UART, RS485, and CANBUS communication protocols, it supports real-time monitoring via Bluetooth apps and data logging for diagnostics, making it ideal for EVs and energy storage systems.
