DOUBLE-SIDED FULLY AUTOMATIC WELDING MACHINE 8 SKXD-700L

DOUBLE-SIDED FULLY AUTOMATIC SPOT WELDING MACHINE (8 SKXD-700L)

Product Data Sheet

1 Year Warranty

Revolutionize Battery Pack Production with Intelligent Double-Sided Welding

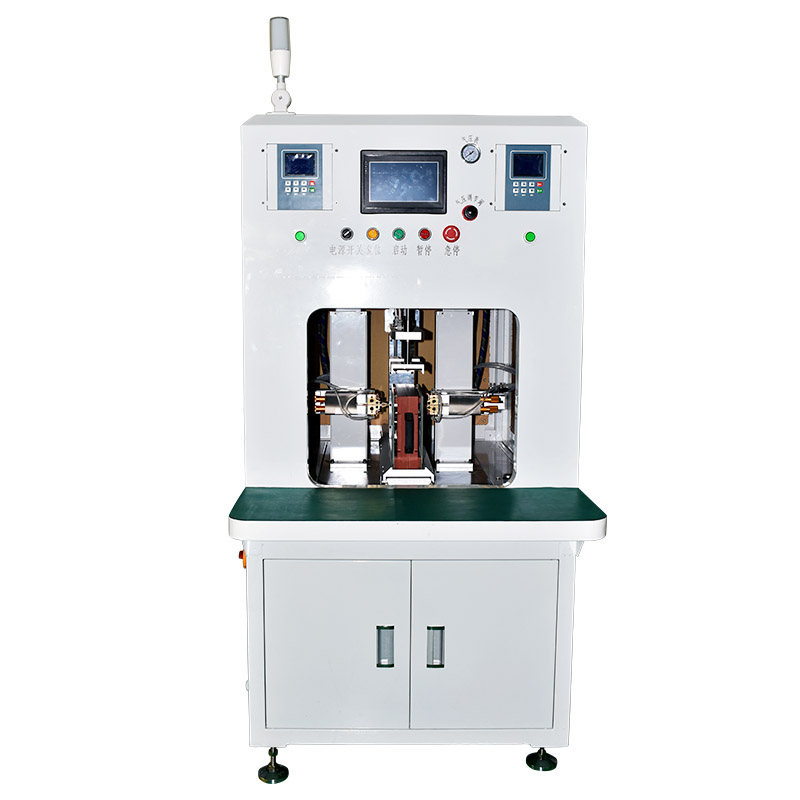

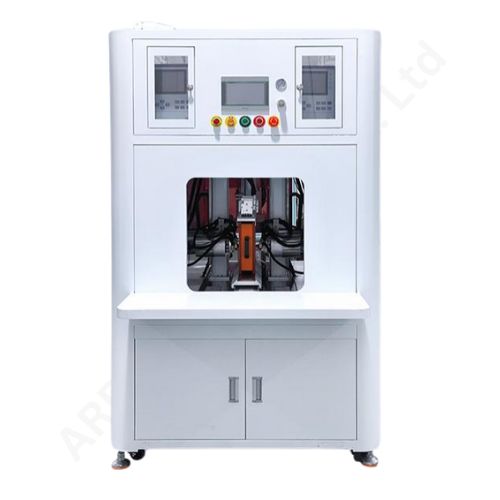

The 8 SKXD-700L is a state-of-the-art double-sided fully automatic spot welding machine designed for high-speed, high-precision battery pack assembly. With its dual-head configuration, this machine can simultaneously weld both sides of cylindrical battery cells, drastically reducing cycle times and ensuring robust connections across parallel and series tabs.

Equipped with dual welding heads, servo motor positioning, CCD visual alignment, and an intelligent control system, the SKXD-700L is ideal for automated battery pack manufacturing in industries such as electric vehicles (EVs), energy storage systems (ESS), e-bikes, power tools, and consumer electronics.

Key Features

• •

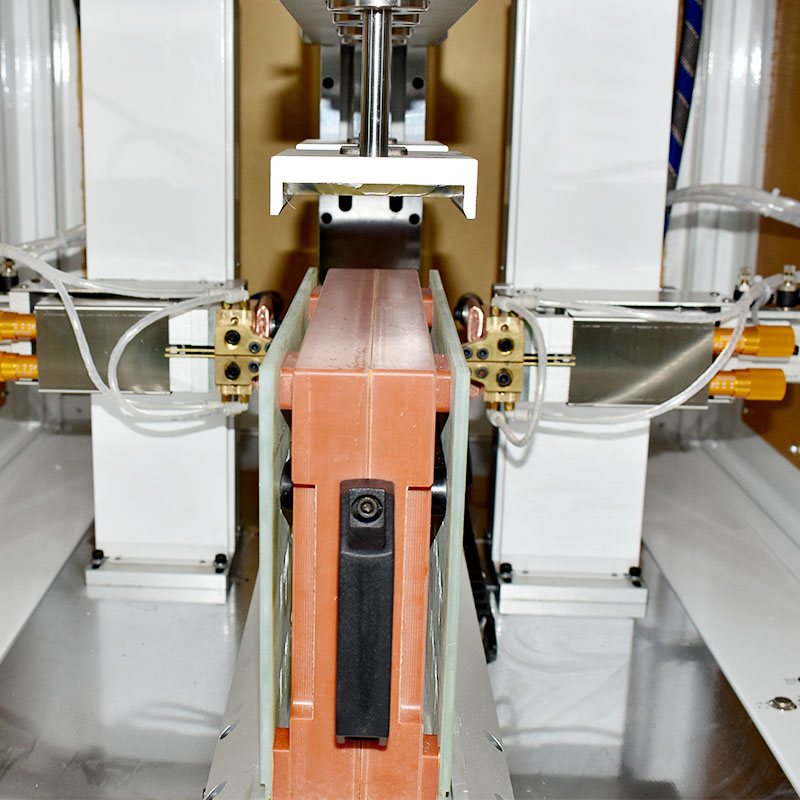

  Double-Sided Spot Welding Two synchronized welding heads allow simultaneous welding of top and bottom tabs, improving efficiency and accuracy.

• •

  CCD Vision Alignment System High-resolution cameras guide the welding heads using real-time visual correction, ensuring perfect positioning and weld quality.

• •

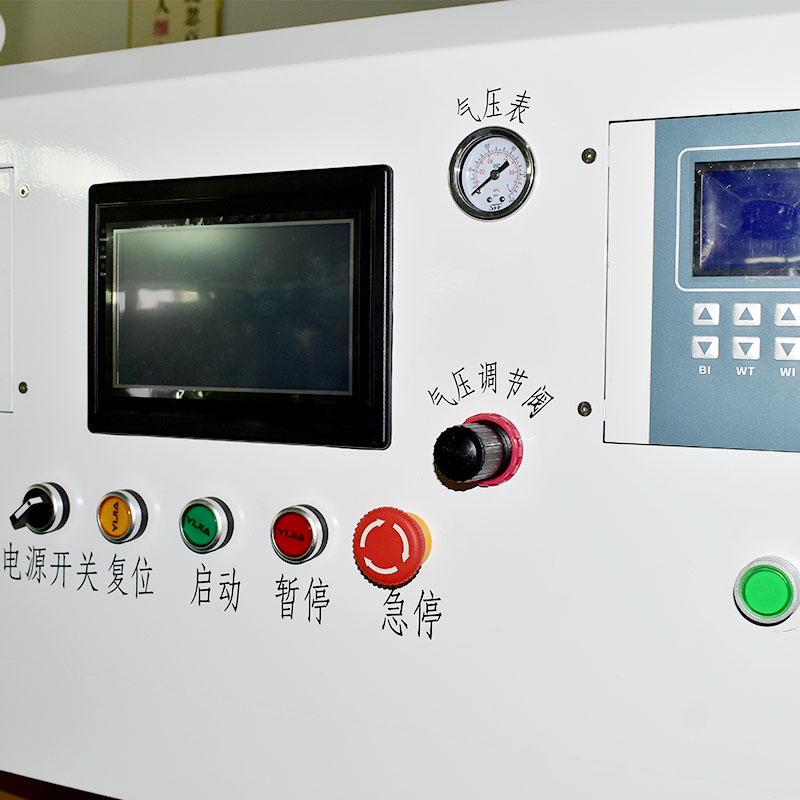

  Smart Control System PLC + touchscreen interface allows users to store multiple welding programs, adjust parameters with ease, and monitor live welding data.

• •

  Fully Automatic Workflow From cell loading and positioning to dual-side welding and unloading, the process is fully automated - reducing labor and human error.

• •

  Servo Motor Precision High-speed servo motors control the XY axis movement of welding heads for precise targeting and fast operation.

• •

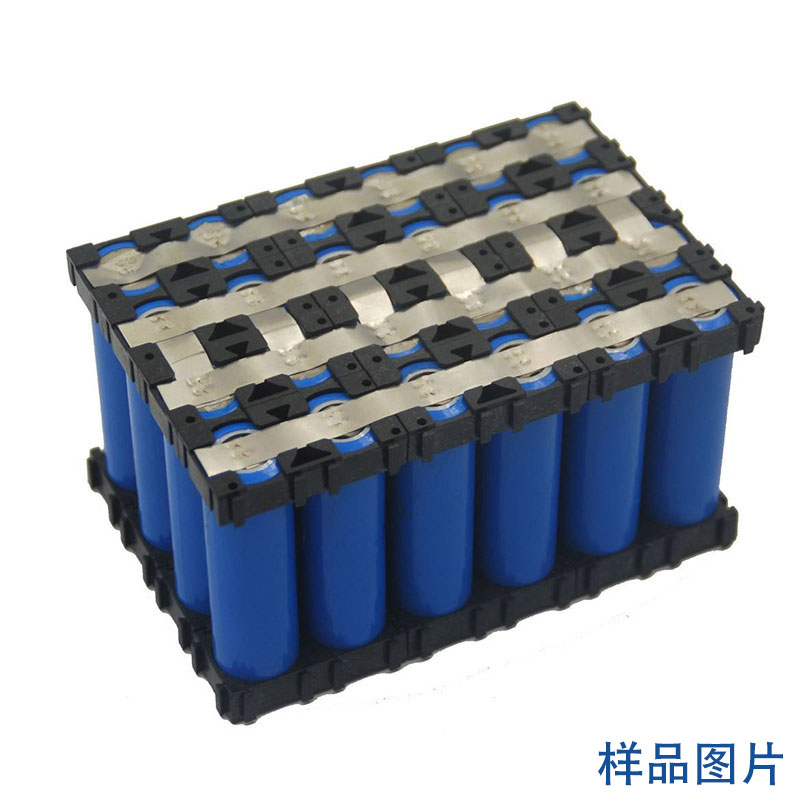

  Multi-Cell Compatibility Supports 18650, 21700, 26650, and 32700 battery formats with minimal tooling changes.

Technical Specifications

• •Model SKXD-700L
• •Source AC220V/AC380
• •Welding Power Transistor power supply
• •Power 1.5Kw
• •Noise <60dB
• •Outline 1800L x 1000W x 1800H/m
• •Free Travel 500mm x 400mm
• •Production Efficiency 3000 times/min (1.2 times per min)
• •Positioning 0.05mm
• •Navar PLC + man-machine
• •Programming Chinese LCD Interface
• •Weight 260kg

Applications

• •

  EV Battery Pack Assembly Ensures strong, balanced welds in multi-series/parallel battery modules.

• •

  Solar Energy Storage Systems Ideal for welding dense and high-capacity lithium battery arrays.

• •

  Power Tools and E-Mobility Products Delivers high-reliability welds under demanding usage environments.

• •

  OEM & Automation-Driven Factories Plug-and-play automation compatible with conveyors and robotic arms.

Why Choose the SKXD-700L?

• •Double-Sided Welding = 2x Efficiency
• •CCD Vision = High Accuracy Alignment
• •Fully Automatic = Low Labor, High Output
• •Supports Multiple Battery Sizes
• •Durable & Production-Ready
