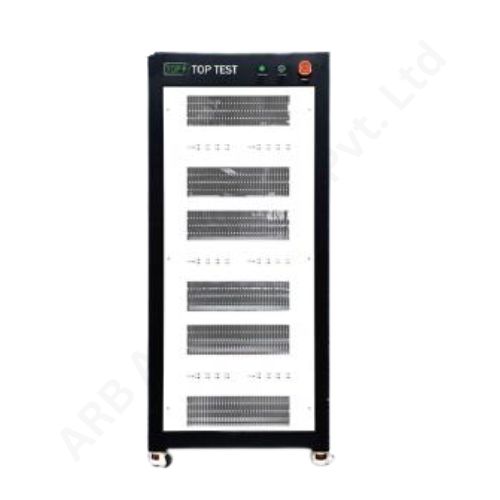

FEEDBACK TYPE AGING CABINET (SKXD-100V100A-4CH) (b480)

FEEDBACK TYPE AGING CABINET (SKXD-100V100A-4CH)

Product Data Sheet

1 Year Warranty

High-Current, High-Voltage Aging Cabinet with Energy Feedback Technology for Battery Modules

The SKXD-100V100A-4CH Feedback-Type Aging Cabinet is a high-precision, high-performance system designed for aging and cycle testing of lithium-ion battery modules used in electric vehicles (EVs), energy storage systems (ESS), and industrial power solutions. With 4 independent test channels, each supporting up to 100V and 100A, this cabinet enables powerful parallel testing with advanced safety and energy-saving features.

Engineered for laboratories, production lines, and R&D environments, this aging cabinet features energy feedback technology, allowing it to recycle over 90% of discharged energy back to the grid. This makes it not only efficient but also eco-friendly and cost-effective for long-duration testing.

Key Features

• •

  Energy Feedback System Returns discharged energy to the grid, reducing heat dissipation and energy costs by over 90%, ideal for continuous testing environments.

• •

  High-Capacity Output Each of the 4 channels independently supports up to 100V and 100A, perfect for testing large-format battery modules and high-capacity cells.

• •

  Programmable Test Profiles Customizable charge/discharge protocols including CC, CV, Rest, and Loop Cycles, adaptable to various battery chemistries and test plans.

• •

  Real-Time Monitoring and Logging The user-friendly software enables real-time visualization, tracking of voltage, current, capacity, and cycle count. Export options include Excel and CSV.

• •

  Safety First Design Features robust safety protections including over-voltage, over-current, over-temperature, short-circuit, and reverse polarity detection.

• •

  Intelligent Cooling System Built-in smart cooling ensures efficient heat dissipation during long cycles, maintaining test stability and equipment longevity.

• •

  PC Software Control Operate and monitor the machine remotely through Ethernet or USB, making it suitable for automation and integration into lab networks.

Technical Specifications

• •Model SKXD-100V100A-4CH
• •Number of Channels 4 (Independently Controlled)
• •Voltage Range 0–100V
• •Current Range 0–100A
• •Voltage Accuracy ±0.05% FS
• •Current Accuracy ±0.1% FS
• •Test Modes CC, CV, Pulse, Loop, Rest
• •Energy Recovery Efficiency ≥ 90%
• •Cooling System Air-Cooled, Intelligent Fan System
• •Data Recording Interval Adjustable (1s to 60s)
• •Communication Interface Ethernet / USB
• •Software Platform PC-Based Control and Monitoring
• •Power Supply AC 380V, 50Hz (Three-Phase)
• •Dimensions Approx. 1800mm × 900mm × 1900mm
• •Weight Approx. 580 kg

Applications

• •

  EV Battery Module Testing Long-duration performance aging for automotive-grade battery modules.

• •

  ESS Battery Validation Accurate cycling of cells used in residential, commercial, and industrial energy storage systems.

• •

  Battery Pack R&D and Production QA Reliable and efficient for development and factory-level quality assurance.

• •

  Power Tool and Industrial Packs Capable of testing rugged packs used in heavy-duty environments.

Why Choose SKXD-100V100A-4CH?

• •Energy-saving feedback system
• •High current/voltage capability
• •4-channel parallel operation
• •Precision testing with built-in safety
• •Ideal for module-level battery aging
