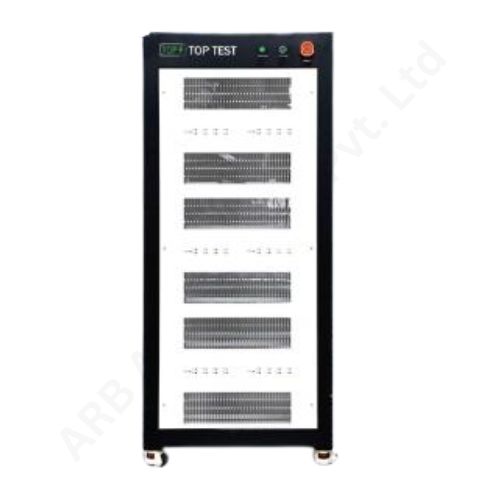

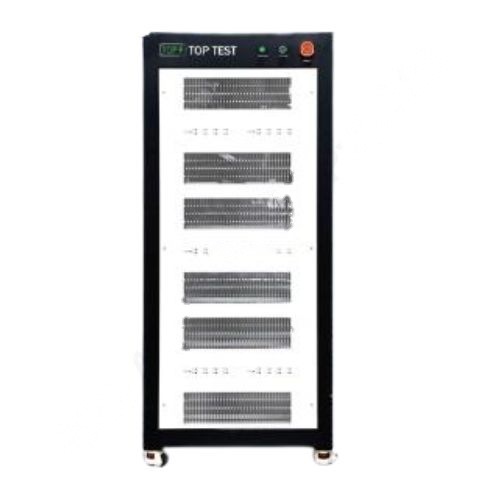

FEEDBACK TYPE AGING CABINET (SKXD-100V60A-8CH)

Product Data Sheet

1 Year Warranty

High-Efficiency Energy Recovery Aging Cabinet for Lithium Battery Cells

The SKXD-100V60A-8CH is an advanced Feedback-Type Battery Aging Cabinet built for high-voltage, high-current aging and cycle testing of lithium-ion battery cells and modules. With 8 independent channels supporting up to 100V and 60A each, this cabinet is designed to handle the demands of EV, ESS, and industrial-grade lithium battery production.

What sets this model apart is its feedback (energy recovery) technology, which allows discharged energy to be fed back into the power grid rather than wasted as heat — making it an eco-friendly and cost-saving solution for large-scale battery testing facilities.

Key Features

• •

  Feedback Energy Recovery Recycles over 90% of discharged energy back to the grid, significantly reducing heat dissipation, operating cost, and energy waste.

• •

  8-Channel Independent Operation Each channel can run separate charging/discharging programs simultaneously, with 100V / 60A per channel — ideal for high-capacity cells and battery modules.

• •

  Multi-Step Programmable Testing Supports complex charge/discharge aging profiles including constant current (CC), constant voltage (CV), rest, and cycling tests.

• •

  Intelligent Software Control Features real-time monitoring, graphical data display, historical analysis, and export capabilities through a powerful PC interface.

• •

  Complete Protection System Includes overvoltage, overcurrent, overheating, reverse connection, and short circuit protection, ensuring safe and reliable long-duration operation.

• •

  Efficient Thermal Management Equipped with a smart air-cooling system for temperature stability and long-term performance.

Technical Specifications

• •Model SKXD-100V60A-8CH
• •Number of Channels 8 Independent Channels
• •Voltage Range 0–100V
• •Current Range 0–60A
• •Voltage Accuracy ±0.05% FS
• •Current Accuracy ±0.1% FS
• •Data Recording Interval 1s – 60s adjustable
• •Energy Recovery Efficiency ≥ 90%
• •Test Modes CC/CV Charge, CC Discharge, Loop, Rest
• •Control Software PC-Based with Real-Time Monitoring
• •Communication Ethernet / USB
• •Cooling System Intelligent Air Cooling
• •Power Supply AC 380V, 50Hz (Three-Phase)
• •Working Temperature 0°C – 45°C
• •Dimensions Approx. 1800mm × 800mm × 1900mm
• •Weight ~550kg

Applications

• •

  Electric Vehicle Battery Aging Validate long-term performance and degradation patterns of high-voltage lithium battery cells and modules.

• •

  Energy Storage System (ESS) Testing Simulate real-world aging and charge/discharge behavior in stationary power applications.

• •

  Battery R&D Labs Run extended-cycle and high-voltage tests for new cell chemistries and designs.

• •

  Production-Scale Quality Control Integrate into battery production lines for batch-level performance and aging verification.

Why Choose SKXD-100V60A-8CH?

• •Recycles energy back to the grid
• •High voltage & current per channel (100V / 60A)
• •Reduces lab heat, saves electricity costs
• •Independent programmable testing per channel
• •Designed for industrial-grade battery evaluation
