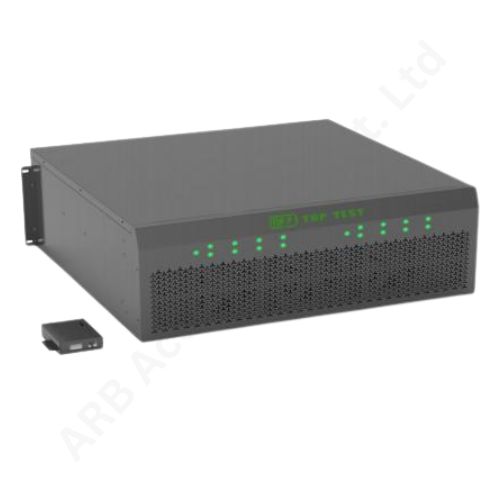

FEEDBACK TYPE AGING CABINET (TOP-100V30A-8CH)

Product Data Sheet

1 Year Warranty

Advanced Regenerative Aging System for Lithium Battery Packs

The TOP-100V30A-8CH is a state-of-the-art Feedback Type Aging Cabinet specifically designed for aging, charge-discharge cycling, and capacity testing of lithium-ion battery packs up to 100V and 30A, with 8 independent channels. What sets this cabinet apart is its regenerative energy feedback system, which recycles discharge energy back to the grid, reducing heat generation and energy waste—making it an environmentally friendly and cost-effective solution for battery manufacturers and labs.

Built with industrial-grade precision and stability, the TOP-100V30A-8CH supports automated testing, remote monitoring, and custom testing protocols, making it ideal for EV battery pack manufacturers, BMS developers, and research institutions focused on energy storage solutions.

Key Features

• •

  Multi-Channel Independent Testing Supports 8 fully independent channels, allowing simultaneous aging or cycling of multiple battery packs with individual parameters.

• •

  Feedback Energy System Regenerates discharged energy back to the grid instead of dissipating it as heat. This dramatically improves energy efficiency and reduces operational cost.

• •

  Smart Test Programming Create and execute custom test steps such as constant current, constant voltage, pulse testing, cut-off limits, rest time, and loop cycles.

• •

  Temperature Monitoring & Protection Integrated temperature sensors and alarms to ensure battery safety during long-duration tests.

• •

  Real-Time Data Monitoring Each channel is monitored for voltage, current, capacity, energy, internal resistance, and cycle count in real-time.

• •

  Centralized Software Platform PC software included for test scheduling, data logging, result analysis, and remote operation.

Technical Specifications

|-Model TOP-100V30A-8CH

• •Max Voltage per Channel 100V
• •Max Current per Channel 30A
• •Channels 8 (independent)
• •Voltage Accuracy ±0.05% FS
• •Current Accuracy ±0.1% FS
• •Capacity Measurement Range 0.01Ah – 9999Ah
• •Energy Feedback Efficiency ≥ 85%
• •Test Modes CC, CV, CP, DCIR, Pulse, Loop, Rest
• •Data Storage Local + Remote (PC software)
• •Interface RS485 / Ethernet / USB
• •Operating Environment 0–45°C, ≤ 85% RH
• •Power Supply AC 380V ±10%, 50/60Hz
• •Dimensions Approx. 1200mm × 800mm × 1800mm
• •Weight ~320kg

Applications

• •

  EV & E-Bike Battery Pack Testing Simulate real-world charge-discharge cycles for long-term reliability and safety analysis.

• •

  Energy Storage System (ESS) Aging Assess energy retention and heat performance over hundreds of cycles.

• •

  Battery Manufacturer QA Lines Essential for cell matching, pre-shipment verification, and pack validation.

• •

  R&D Labs & Institutions Study advanced battery chemistries and cycle life degradation behavior.

Why Choose the TOP-100V30A-8CH?

• •Regenerative Energy Saving Design
• •Accurate, Independent Channel Control
• •Supports Complex Aging and Cycling Protocols
• •Durable, Safe & Smart Testing Environment
• •Ideal for Industrial and R&D Use
