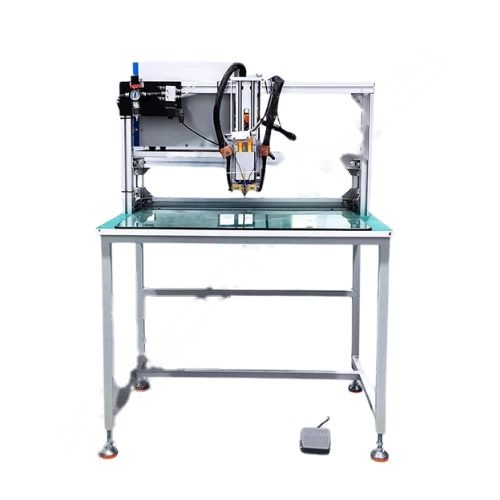

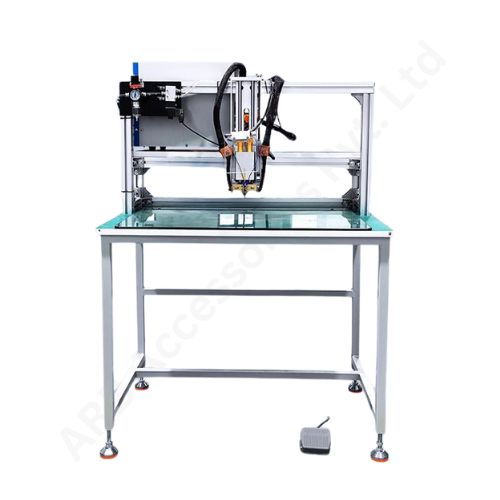

TRANSISTOR PNEUMATIC SPOT WELDING MACHINE (SKXD-50) (b478)

TRANSISTOR PNEUMATIC SPOT WELDING MACHINE (SKXD-50)

Product Data Sheet

1 Year Warranty

Precision Welding for Lithium Battery Packs — Fast, Reliable, and Intelligent

The SKXD-50 Transistor Pneumatic Spot Welding Machine is a high-precision welding solution engineered specifically for lithium battery pack production. Utilizing advanced IGBT transistor control technology, this welding system delivers high-current, low-heat pulse welding with exact control over welding energy and time, ensuring strong, reliable welds without damaging the battery structure.

Equipped with a pneumatic pressure system and a smart digital interface, the SKXD-50 ensures consistent force during welding, making it ideal for both small-scale lab use and high-volume pack production in industries like EVs, power tools, solar storage, and consumer electronics.

Key Features

• •

  Advanced Transistor Welding Technology Utilizes precision-controlled IGBT modules for fast, low-splash welding with superior energy efficiency.

• •

  Pneumatic Pressure Control Ensures uniform electrode pressure for consistent and reliable welds — crucial for high-quality battery connections.

• •

  Real-Time Monitoring Built-in microcontroller system monitors current, pulse time, and welding results, reducing error and material waste.

• •

  Digital Touchscreen Interface

  • •Easy-to-use control panel
  • •Store multiple welding programs
  • •Monitor voltage, current, and pulse width in real time
• •

  Safety Features Includes overheat protection, short-circuit prevention, and error alarms for operator and equipment safety.

• •

  Flexible Compatibility Suitable for nickel, copper, and aluminum tab welding across 18650, 21700, 26650, and pouch cells.

Technical Specifications

• •Model SKXD-50
• •Welding Type Transistor / Capacitor Discharge
• •Control Method Constant voltage/current control
• •Welding Current 0-8000 A
• •consumed power 350W
• •Current 8 000A
• •Pulse Modes Single, Double, Multiple
• •Welding Electrodes Tungsten / Copper Alloy (customizable)
• •Electrode Force Adjustable via pneumatic cylinder
• •Welding Material Nickel, Copper, Aluminum tabs
• •Display Interface 7” Color Touchscreen
• •Power Supply AC 220V ±10%, 50/60Hz
• •Air Supply Requirement 0.4–0.7 MPa (Dry, Clean Air)
• •Dimensions Approx. 600mm × 800mm × 1200mm
• •Weight ~130kg

Applications

• •

  Battery Pack Welding Ideal for welding tabs in EV battery modules, e-bikes, solar ESS, and DIY lithium packs.

• •

  Cell Assembly Lines Built for integration into semi-automated or fully automated welding lines.

• •

  Prototyping & R&D Labs Precise control over weld parameters makes it ideal for testing new cell formats or pack designs.

• •

  Power Tool & Device Battery Manufacturing Delivers robust tab connections that stand up to vibration and mechanical stress.

Why Choose the SKXD-50?

• •High Welding Stability
• •Digital Customization & Program Storage
• •Reduced Welding Splash & Electrode Wear
• •Long Lifespan and Easy Maintenance
• •Trusted by Industry Professionals Worldwide
